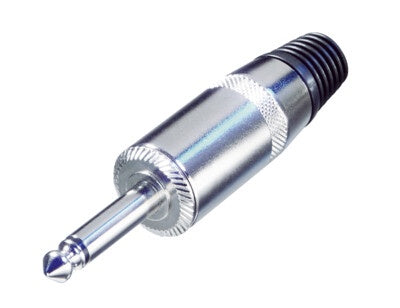

Rean NYS225 Jumbo Jack Plug For Speaker Cables

Rean NYS225 Jumbo Jack Plug 6.35mm / 1/4-inch Plug Jack Plug

The NYS225 is a 2-pole Male 6.35mm / 1/4-inch Plug with large shell for speaker cable, large metal handle and nickel-plated brass contacts.

It has PVC bushing, nickel-plated zinc die-cast shell, crimp type SnCe plated strain relief and thermoplastic insulation.

Contact Resistance: ≤ 10mΩ
Insulation Resistance: ≥ 200 MΩ(Initial)
Dielectric Strength: 0.5 KVdc 50HZ
Lifetime: > 1,000 Mating Cycles
Insertion and Withdrawal Force: ≤ 60 N
Cable O.D.: max 8.8mm for standard outlet
max: 10mm for large outlet ( * L）
Wiresize: 12 AWG
Tip: Brass
Bushing: PA66+30%GF
Inner: Steel
Insulation: CerPVC
Sleeve: Brass
Insulation: PA66+30%GF
Soldering Contact: Brass
Cable Clamp: Steel
Housing: Zinc
Push Ring: ABS
Boot: CerPVC
Tip: Nickel Plating
Sleeve: Nickel Plating
Housing: Nickel Plating
Inner: Zinc Plating
Soldering Contact: Tin and Cer
Cable Clamp: Tin and Cer
