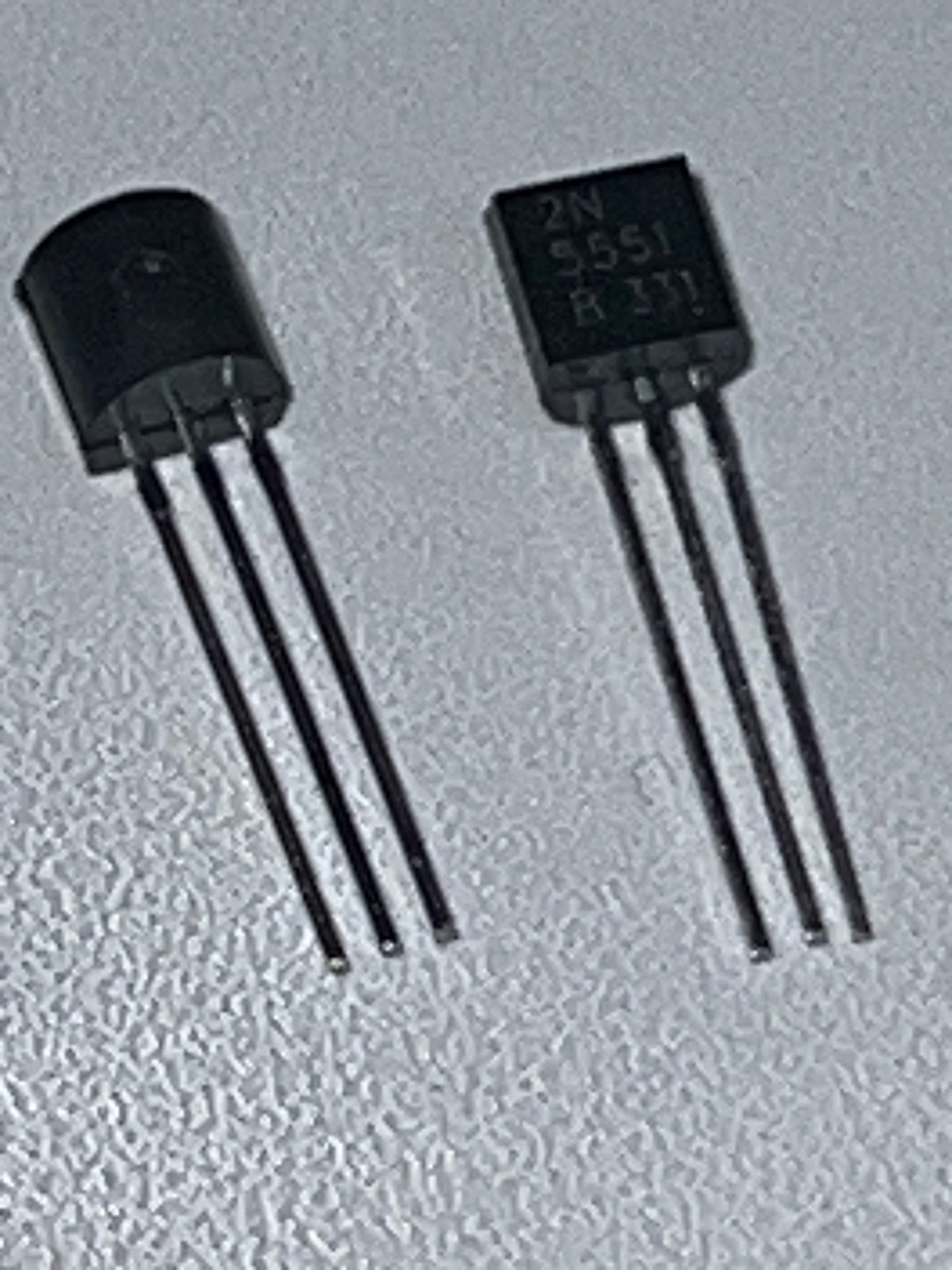

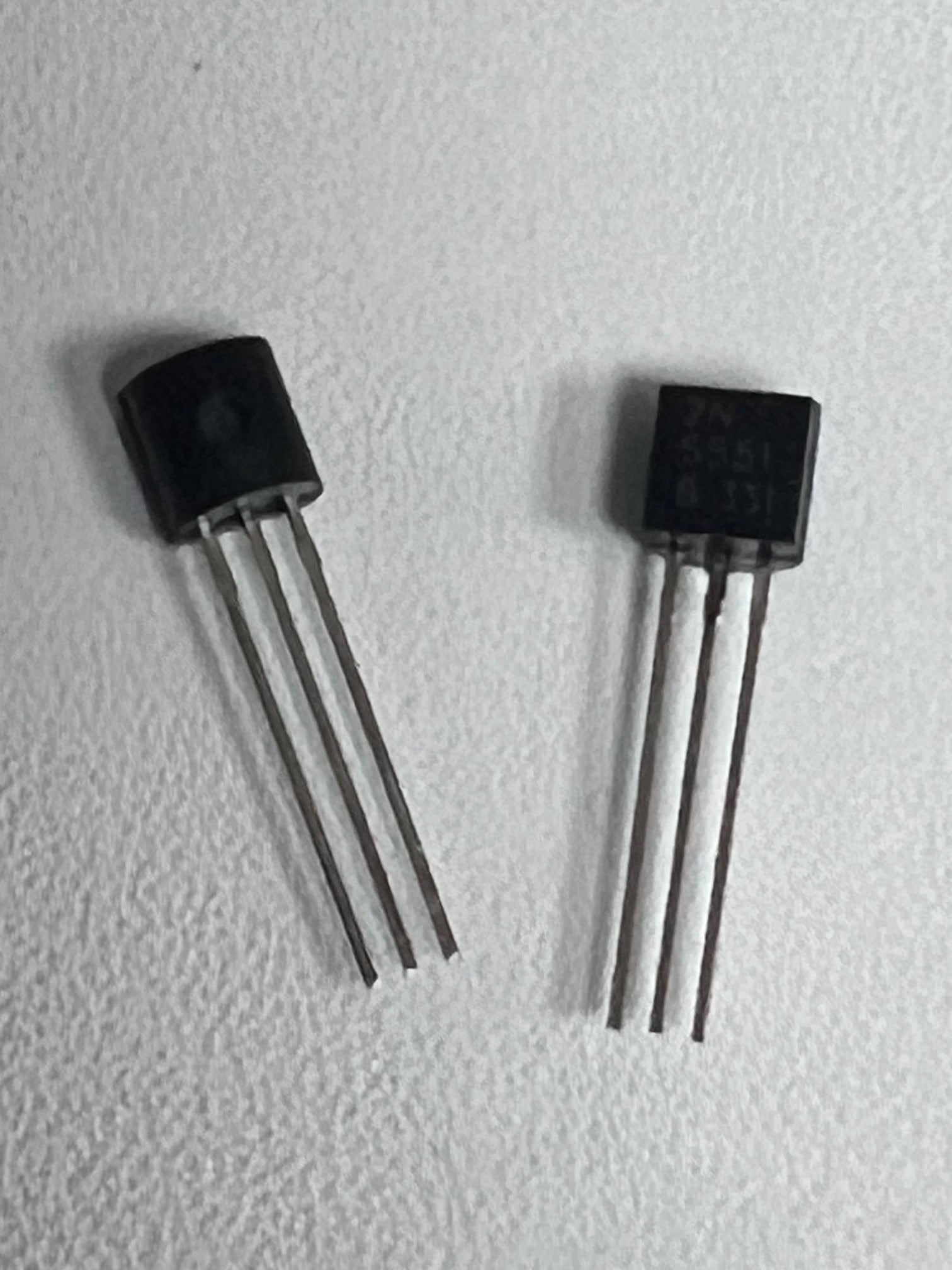

2N5551 TO92 NPN general purpose amplifier - Pack 2 [3]

2N5551 TO92 NPN general purpose amplifier - Pack 2

The 2N5551 is a through hole, NPN general purpose amplifier in TO-92 package. This device is designed for general purpose high voltage amplifiers and gas discharge display drivers.

• Collector to emitter breakdown voltage of 160V
• Collector to emitter saturation voltage of 200mV at 50mA collector current
• Power dissipation of 625mW
• DC collector current of 600mA
• DC current gain of 30 at Ic=50mA
• Operating junction temperature range from -55°C to 150°C
